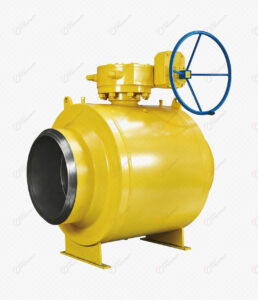

Fully welded ball valves are the standard specification for large-bore natural gas transmission pipelines, compressor station isolation, and long-distance buried pipeline sectioning service where the one-piece welded body eliminates external leakage risk and reduces long-term maintenance requirements compared to bolted body designs. Yellow epoxy coating is the mandatory identification and corrosion protection standard for natural gas pipeline valve service, ensuring both corrosion resistance and system identification compliance across above-ground, buried, and vault installations.

Full-bore through-conduit design is mandatory for gas transmission pipeline service under API 6D, ensuring unrestricted gas flow without pressure drop penalty and complete pigging tool passage for inline inspection, cleaning, and geometry measurement operations without valve removal. Trunnion mounted construction provides consistent seat sealing and low operating torque on large-bore service throughout the valve’s design service life of 30 years or more without body disassembly — a fundamental requirement for buried pipeline valves where excavation for maintenance is costly and operationally disruptive.

Pipeline steel grades (L245, L360, L415) are specified for gas transmission pipeline service where material grade matching with the pipeline steel is required for welding compatibility and consistent mechanical properties across the welded joint. Carbon steel (WCB, A105) covers standard above-ground and vault-mounted installations, with low-temperature grades (LCB) for Arctic and cold climate buried pipeline applications where impact toughness at sub-zero temperatures is required. Gear operators are standard for large-bore manual operation, with pneumatic, hydraulic, and electric actuators selected for ESD duty, remote operation, and SCADA-integrated pipeline control systems. Design standards API 6D and ISO 14313 govern fully welded ball valves for gas transmission pipeline service.
