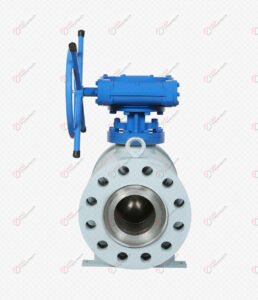

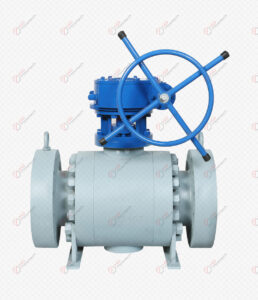

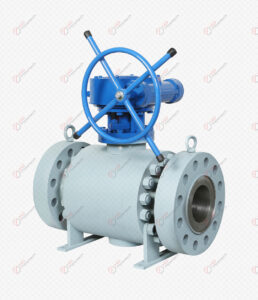

Forged steel trunnion mounted ball valves at Class 600 are selected for full-bore isolation service in high-pressure process piping, compressor stations, and critical pipeline applications where forged body construction, reduced seat load, and long service life under high differential pressure are required. The forged A105 body eliminates casting porosity and provides consistent mechanical properties throughout the valve body — a critical requirement for high-pressure cyclic service where cast body defects could initiate fatigue cracking under sustained differential pressure loading.

Trunnion mounted construction is standard for Class 600 and above, where the trunnion support transfers differential pressure loads from the seats to the bearings — maintaining consistent low operating torque and seat sealing performance throughout the valve’s service life without the accelerated seat wear associated with floating ball designs under high differential pressure. Spring-loaded seats provide bidirectional sealing and automatic cavity pressure relief, preventing body cavity over-pressurization — a critical safety requirement for high-pressure hydrocarbon and process service.

Body material selection follows service temperature and corrosion requirements — A105 for standard high-pressure carbon steel service up to 425°C, alloy steel (F11, F22) for high-temperature process and steam applications up to 600°C, and stainless steel (F304, F316) or duplex grades for corrosive and sour service environments. Gear operators are standard for Class 600 service, with electric, pneumatic, and hydraulic actuators selected for automated control, ESD duty, and remote operation requirements. Design standard API 6D and ASME B16.34 govern forged steel trunnion mounted ball valves for high-pressure process and pipeline service.
