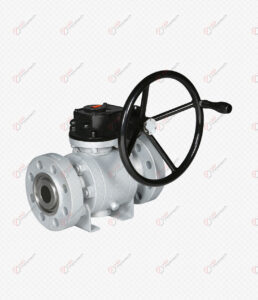

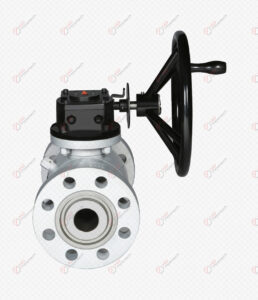

Forged steel trunnion mounted ball valves are selected for full-bore isolation service in medium-to-high pressure process piping and pipeline applications where forged body construction, reduced seat load, and consistent sealing performance under differential pressure are required. The A105N forged body eliminates casting porosity and provides uniform mechanical properties — a critical advantage over cast alternatives in cyclic pressure service and applications where material consistency and full material traceability are specification requirements.

Trunnion mounted construction is preferred over floating ball designs for medium-to-large bore sizes at DN100 and above at Class 300–600, where the trunnion support transfers differential pressure loads from the seats to the bearings — maintaining consistent low operating torque and long seat life throughout the valve’s service life. Spring-loaded seats provide bidirectional sealing and automatic cavity pressure relief, preventing body cavity over-pressurization in process and hydrocarbon service where trapped fluid thermal expansion is a safety consideration.

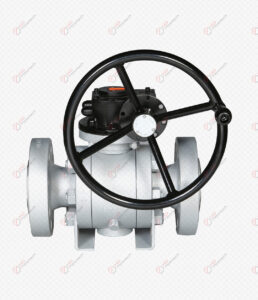

Position indicators are standard on gear-operated trunnion mounted ball valves, providing clear open/closed status confirmation for plant operators managing multiple isolation points in process facilities. Body material selection follows service temperature and corrosion requirements — A105N for standard carbon steel service up to 425°C, alloy steel (F11, F22) for high-temperature applications up to 600°C, and stainless steel (F304, F316) or duplex grades for corrosive and sour service. Design standards API 6D and ASME B16.34 govern forged steel trunnion mounted ball valves for process and pipeline service across all pressure classes and material grades.
