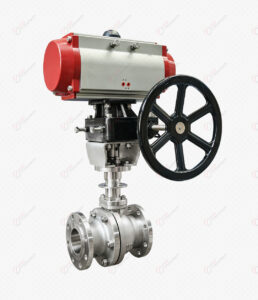

Floating ball valves with combined pneumatic actuation and manual gear override are selected for automated process isolation service where backup manual operation capability is required — ensuring valve operability during instrument air supply failures, actuator maintenance, planned shutdowns, and system commissioning without removing the actuator or installing temporary manual operators. The integrated gear override eliminates the need for separate bypass arrangements or actuator removal for manual operation, reducing maintenance time and operational complexity in automated process systems.

Stainless steel body construction (CF8M, CF8) is selected for corrosive chemical, offshore, and food-grade process service where carbon steel body materials are not compatible with the process fluid or hygienic requirements. The combination of corrosion-resistant body material and automated pneumatic actuation makes CF8M floating ball valves with gear override the standard specification for chemical injection systems, corrosive utility isolation, and process automation in facilities where both remote operation and reliable manual backup are design requirements.

Spring-return pneumatic actuators are standard where fail-safe positioning is required — the spring ensures valve closure or opening on loss of instrument air without operator intervention. Manual gear overrides are sized to provide comfortable hand operation at the full rated differential pressure of the valve, ensuring the override is genuinely usable in emergency conditions rather than theoretical backup only. Body material selection — CF8M for general corrosive service, CF3M for welded assemblies, WCB for standard process, and duplex grades for sour and offshore service — is determined by fluid type and corrosion requirements. Design standards API 6D and ASME B16.34 govern floating ball valve pressure-temperature ratings for process service.
